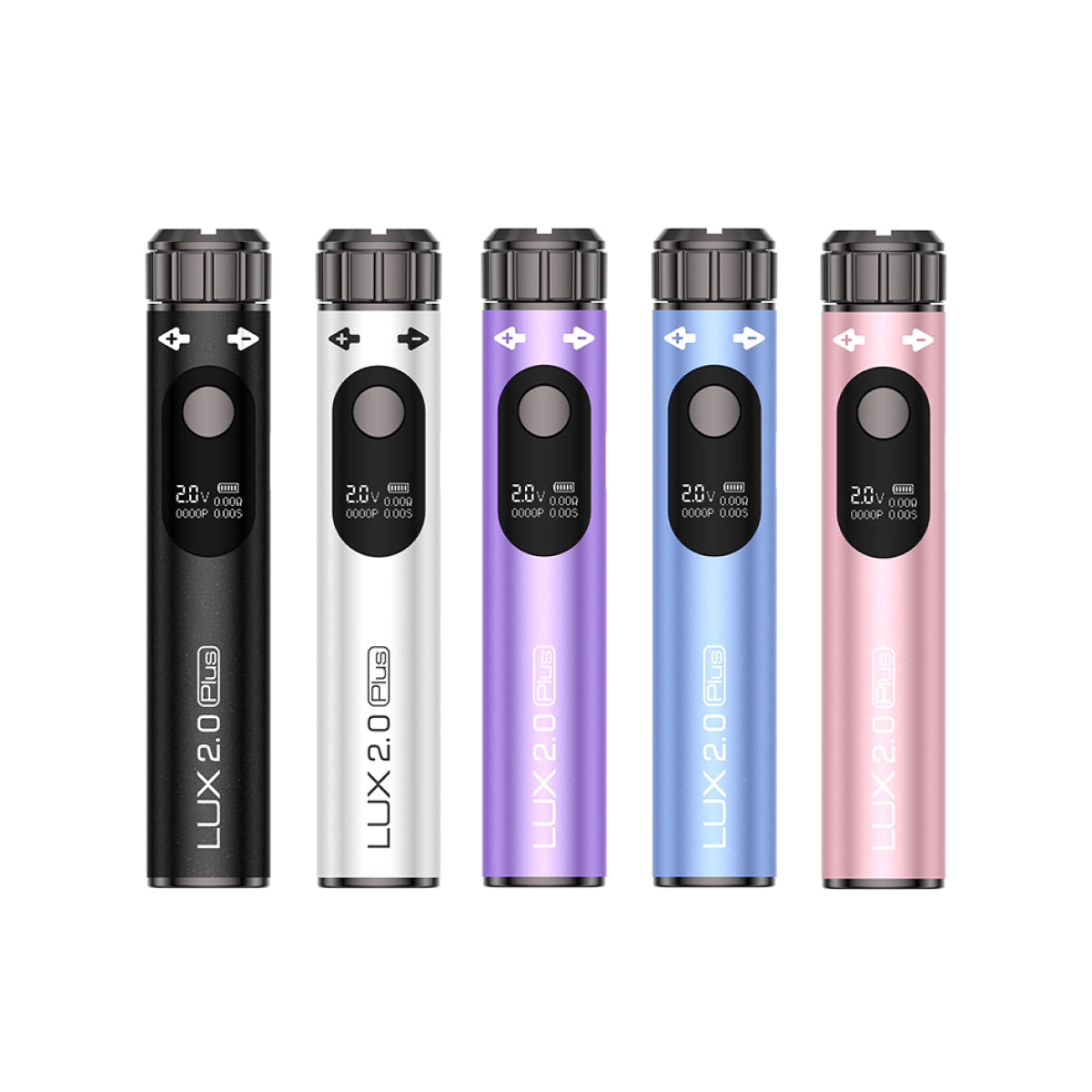

Yocan Lux 2.0 Dab Pen Battery Manual

Charing the Yocan Lux 2.0 Dab Pen Battery

1. Get a USB type-C charging cable and connect it to the charging port, which is found on the side of the vape pen battery.
2. Plug the other end to power brick and connect it to a wall socket.
3. The battery level will be reflected on the screen so be sure to unplug the charging cable when the battery is full.

Note: Alternatively, you may plug the charging cable to a computer, laptop, or a video game console that has a USB port. It can charge the battery at a minimum rate. Just make sure to unplug when the battery is fully charged. The Yocan Lux 2.0 Dab Pen Battery does not come with a charging cable.

Powering the Yocan Lux 2.0 Dab Pen Battery

1. Make sure that the battery is fully charged (follow the instructions above).
2. Press the power button five times quickly to turn the vaporizer on.
3. Press it five times again to power it off.

Note: The power button of the Yocan Lux 2.0 Dab Pen Battery can be located on top of the OLED display. It is the circular button that sits on the same piano black bezel as the display unit.

Changing the Yocan Lux 2.0 Dab Pen Battery Voltage Level

1. Make sure the Yocan Lux 2.0 Dab Pen Battery is powered on. Press the power button five times to turn it on.
2. Locate the plus (+) and minus (-) buttons on the side of the device. The + button increases the temperature while the - button decreases the voltage level.
3. Release the buttons on the Yocan Lux 2.0 Dab Pen Battery when you have selected your preferred voltage setting and the Yocan Lux 2.0 Dab Pen Battery will automatically apply the desired heat level.
4. You can also use the rotary knob located on top of the vape pen battery and twist it to select your prefered temperature setting.

Loading the Yocan Lux 2.0 Dab Pen Battery

Wax:

1. Get your preferred wax coil.
2. Check the Yocan Lux 2.0 Dab Pen Battery 510-threaded connections and look for obstructions that can block the connection between the coil or the battery, remove if necessary.
3. Connect the 510-threaded wax coil by twisting the coil clockwise, stop when you feel a significant amount of resistance.
4. If it is the first time you are using your Yocan Lux 2.0 Dab Pen Battery, be sure to sanitize it.
5. Prepare your dab tool and scoop up a recommended amount of wax concentrates. Place it atop the coil.
6. Replace any necessary accessories onto the coil like a mouthpiece, etc.

Note: The Yocan Lux 2.0 Dab Pen Battery can be used with wax concentrates. Use a compatible 510-threaded wax coil. When loading, make sure that the dab tool does not touch the coils as contact with another metal may cause the coils to break or get damaged.

Oil:

1. Make sure to fill your refillable carts with oil before connecting it to the Yocan Lux 2.0 Dab Pen Battery. Disregard this step if using a pre-filled cart.
2. Check the Yocan Lux 2.0 Dab Pen Battery 510-threaded connections and look for obstructions that can block the connection between the coil or the battery, remove if necessary.
3. Connect the 510-threaded oil cartridge by twisting it clockwise, stop when you feel a significant amount of resistance.
4. Replace any necessary accessories onto the cartridge like a mouthpiece, etc.

Note: The Yocan Lux 2.0 Dab Pen Battery can be used with oil cartridges. Use a compatible 510-threaded oil cart. When using a refillable oil cartridge, make sure to refill the cartridge first before placing it on the Yocan Lux 2.0 Dab Pen Battery as spillage can cause inconvenience or damage to the battery.

Maintenance and cleaning of the Yocan Lux 2.0 Dab Pen Battery

1. Make sure to remove the cartridge of the Yocan Lux 2.0 Dab Pen Battery.
2. Turn off the Yocan Lux 2.0 Dab Pen Battery by pressing the power button five times rapidly.
3. Take a cotton swab and wipe the cartridge contacts clean.
4. Use a dry paper towel and wipe the body of the Yocan Lux 2.0 Dab Pen Battery clean.
5. Follow the charging instruction and use the dedicated charging cable for the Yocan Lux 2.0 Dab Pen Battery to avoid battery damage.
6. Make sure to charge the Yocan Lux 2.0 Dab Pen Battery before storing it too long.

Note: Make sure to keep the parts dry before storing as it may cause mold buildup and may have negative effects if used. Use a dry paper towel or paper cloth after wiping the parts with a damp material, so as not to allow molds to develop on the device.
